SL1226P

406,00 ₼399,00 ₼-2%

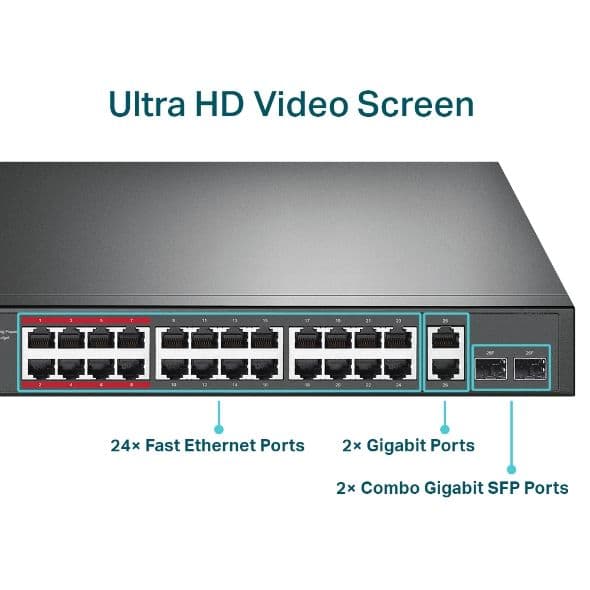

24× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 2× combo Gigabit SFP slots

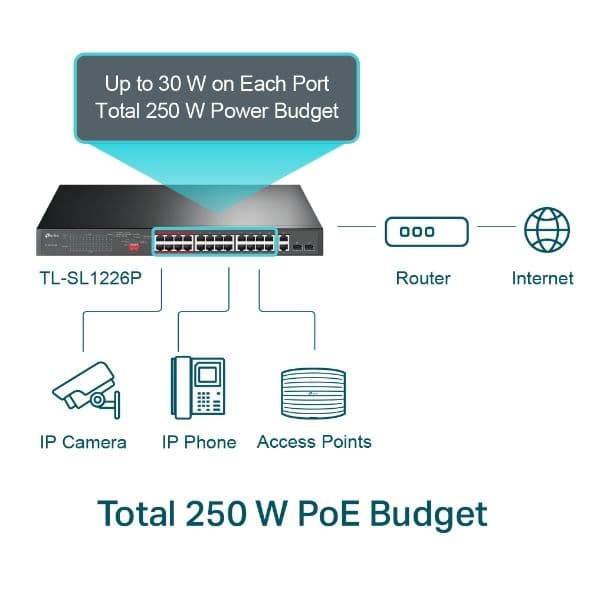

High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*

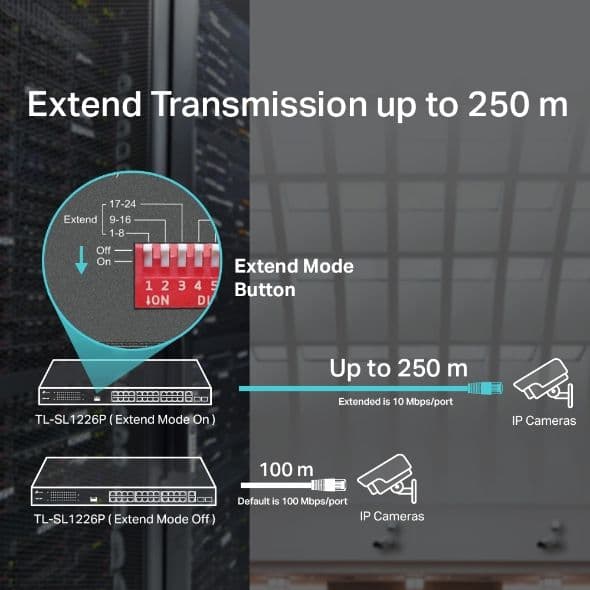

Up to 250 m data and power PoE transmission range under Extend Mode**, ideal for surveillance system

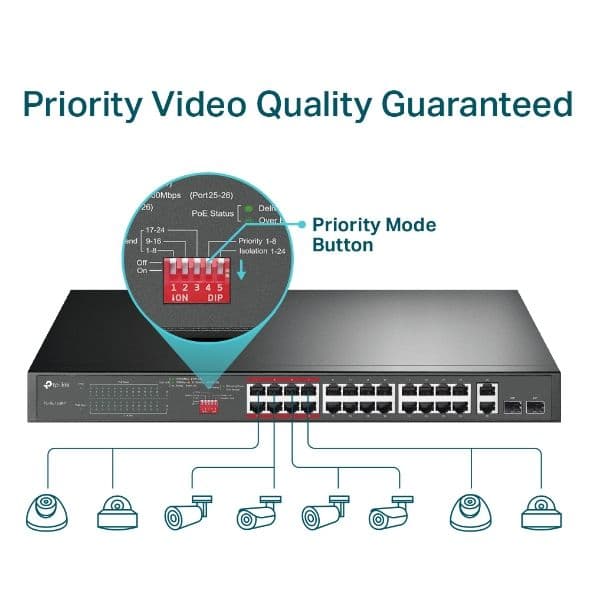

Priority Mode ensures high priority of ports 1–8 to guarantees the quality of sensitive applications like video monitor
Isolation Mode allows one-click client traffic separation for higher security and performance

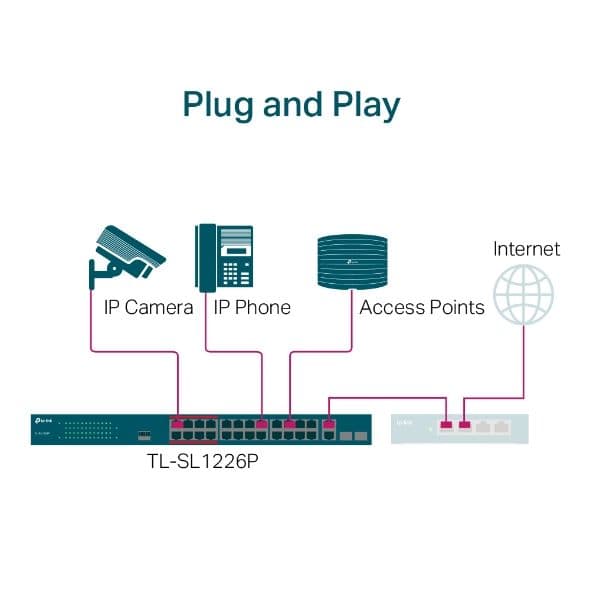

Plug and play, with no configuration and installation needed

Low stock

Buy via WhatsApp

Advanced Features

Compatible With IEEE 802.3at/af Compliant PDsExtend Mode (Up to 250m PoE power supply and data transmission)Priority ModeIsolation ModePD Detection Intelligent Power SupplyMac Address Auto-Learning and Auto-AgingIEEE802.3x Flow Control

Package Content

TL-SL1226PPower CableInstallation GuideTwo mounting brackets and the fittings

Environment

Operating Temperature: 0–50 °C (32–122 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% non-condensingStorage Humidity: 5–90% non-condensing

Power Supply

100-240 VAC, 50/60 Hz

Interface

24× PoE+ 10/100 Mbps RJ45 Ports2× 10/100/1000 Mbps RJ45 Ports2× Combo Gigabit SFP Slots

Dimensions ( W x D x H )

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)

Certification

CE, FCC, RoHS

Max. Power Consumption

18.32 W (220/50 Hz. no PD connected)294 W (220/50 Hz. with 250 W PD connected)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF
