SG1210MPE

254,00 ₼239,00 ₼-6%

9× gigabit RJ45 ports and 1× combo gigabit SFP/RJ45 port

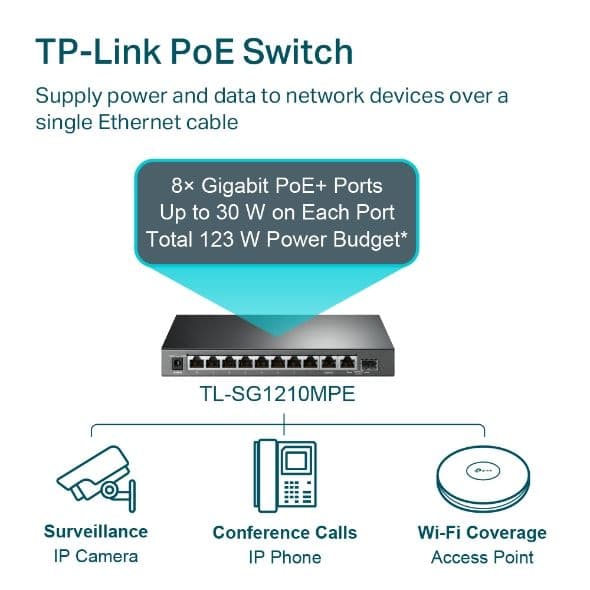

Equipped with eight 802.3af/at PoE+ ports with up to 30 W for each port, the switch can transfer data and power via one single cable
Supports PoE power up to 123 W for all PoE ports*

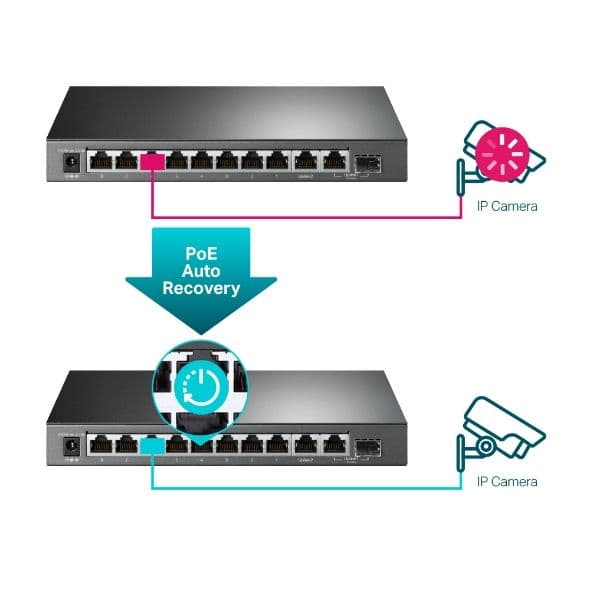

Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery

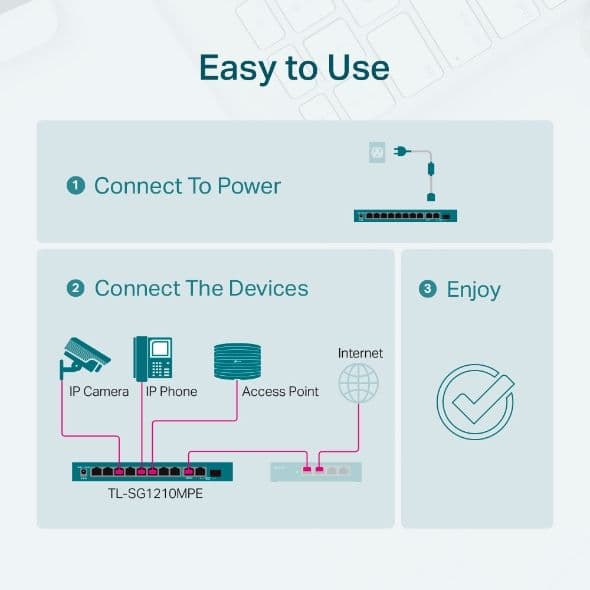

Simple network set-up on top of plug-and-play connectivity
Web-based user interface and Easy Smart Configuration Utility simplify configuration
Fanless design lowers energy consumption and eliminates operating noise

Low stock

Buy via WhatsApp

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at, IEEE 802.3z

Quality of Service

Support Port-Based/802.1p/DSCP prioritySupport 4 priority queuesRate LimitStorm Control

Management Features

Web-based GUIEasy Smart Configuration Utility

Package Content

TL-SG1210MPEPower AdapterInstallation GuideRubber Feet

Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90%RH non-condensingStorage Humidity: 5%~95%RH non-condensing

Power Supply

External Power Adapter (Output: 53.5 VDC/2.43 A)

System Requirements

Microsoft® Windows® for running Utility

Interface

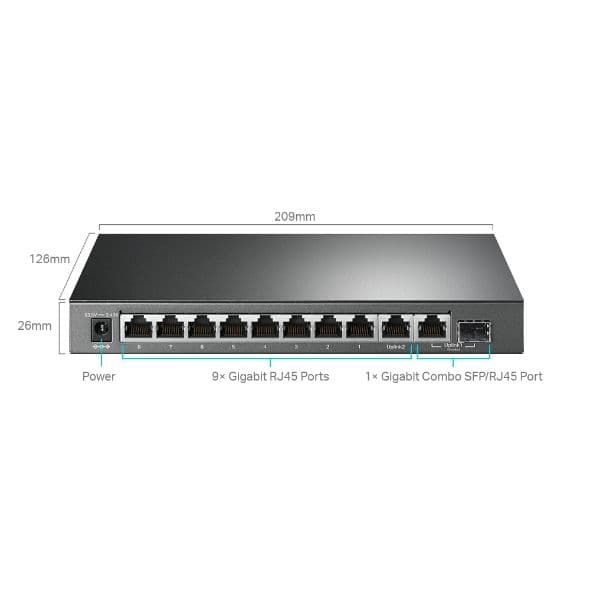

9× 10/100/1000 Mbps RJ45 Ports1× 1000 Mbps Combo SFP/RJ45 PortAUTO Negotiation/AUTO MDI/MDIX

Dimensions ( W x D x H )

8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)

Certification

FCC, CE, RoHS

Max. Power Consumption

7.66 W (220V / 50Hz with no PD connected)141.54 W (220V / 50Hz with 123 W PD connected)

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100Ω STP (maximum 100m)
