Up to 250m Transmissions
With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.

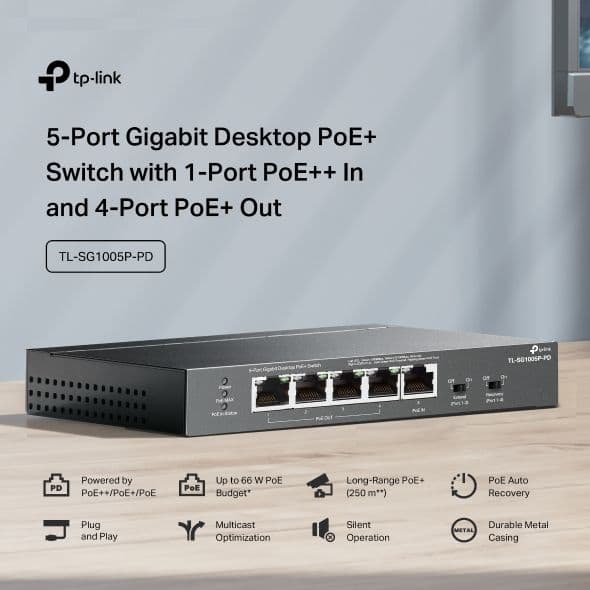

Powered by
PoE++/PoE+/PoE
Up to 66 W PoE
Budget*
Long-Range PoE+
(250 m**)
PoE Auto
Recovery
Plug
and Play
Multicast
Optimization
Silent
Operation
Durable Metal
Casing

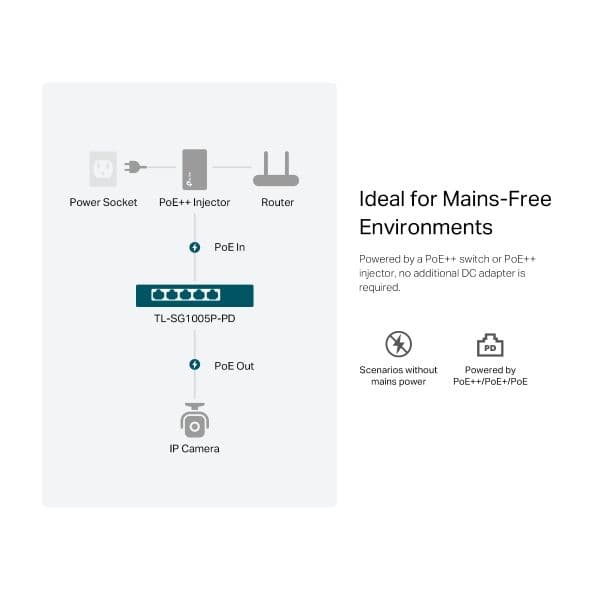

Scenarios without
mains power
Powered by
PoE++/PoE+/PoE
PoE+ (PoE Out)
PoE++ (PoE In)Access
Point
IP
Phone
IP
Camera
4K
Video
Network Video
Recorder
Computer

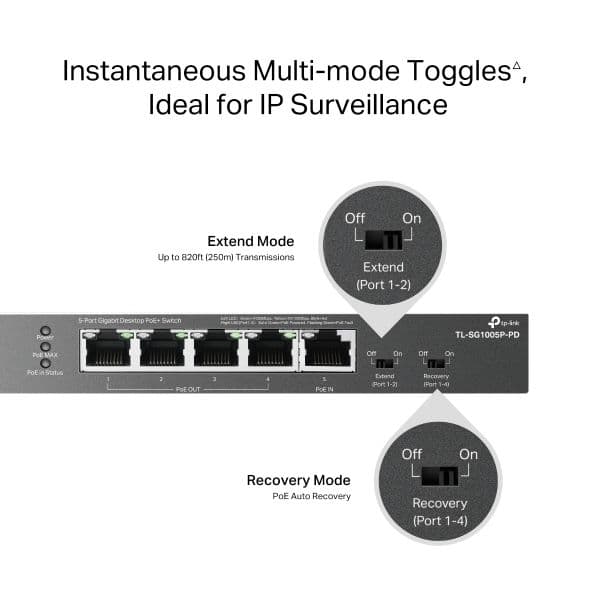

With extend mode, the PoE transmission distance reaches up to 250m** —perfect for IP Camera deployment in large areas.
Recovery mode helps automatically detect and reboot PD devices, such as cameras and APs, when they fall offline or go unresponsive—all without needing manual monitoring and restarts.
IP Phone
IP Camera
Access Point
PoE++ Injector
Internet
Router
| IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
| • Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-4)• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• 802.1p/DSCP QoS• IGMP Snooping |
| • TL-SG1005P-PD• Installation Guide |
| • Operating Temperature: -30–70 ℃ (-22–158 ℉);• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing |
| Only Powered by PoE Device |
| • 5× 10/100/1000Mbps RJ45 Ports• 1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)• 4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at)• AUTO Negotiation• AUTO MDI/MDIX |
| 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| CE, FCC, RoHS |
| • 2.68 W (90W PoE In, with no PD connected)• 68.59 W (90W PoE In, with 66 W PD connected) |
| • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m) |
| Fanless |
| • 9.112 BTU/h (90W PoE In, with no PD connected)• 233.206 BTU/h (90W PoE In, with 66 W PD connected) |
| 10 Gbps |
| 7.44 Mpps |
| 2k |
| Store-And-Forward |

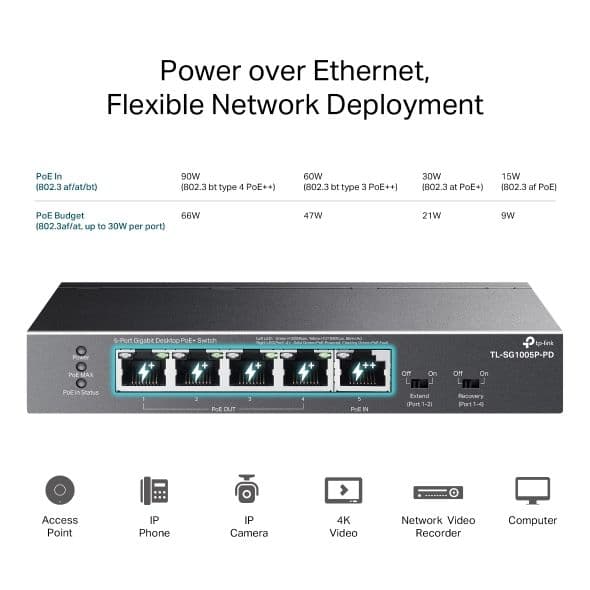

| • PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4• PoE Out Ports: Ports 1-4, compliance with 802.3af/at• PoE Power Budget:-66 W when powered by 802.3bt Type 4 (90 W)-47 W when powered by 802.3bt Type 3 (60 W)-21 W when powered by 802.3at (30 W)-9 W when powered by 802.3af (15.4 W) |
