SF1009P

89,00 ₼76,00 ₼-15%

9× 10/100 Mbps RJ45 ports
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port

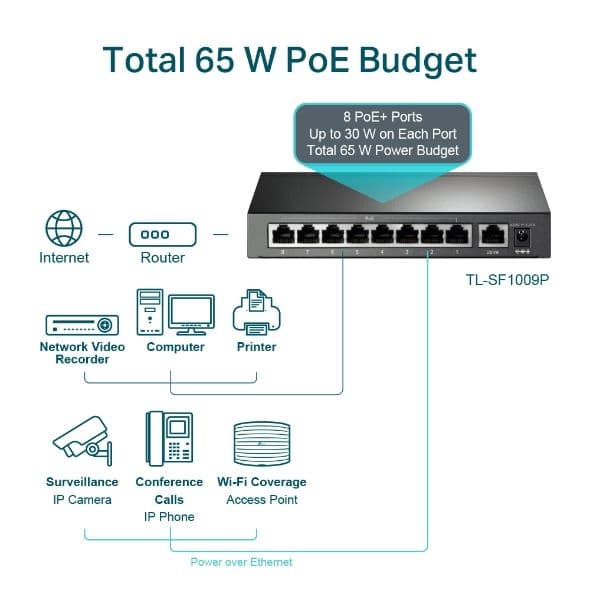

Supports PoE Power up to 65 W for 8 PoE ports*

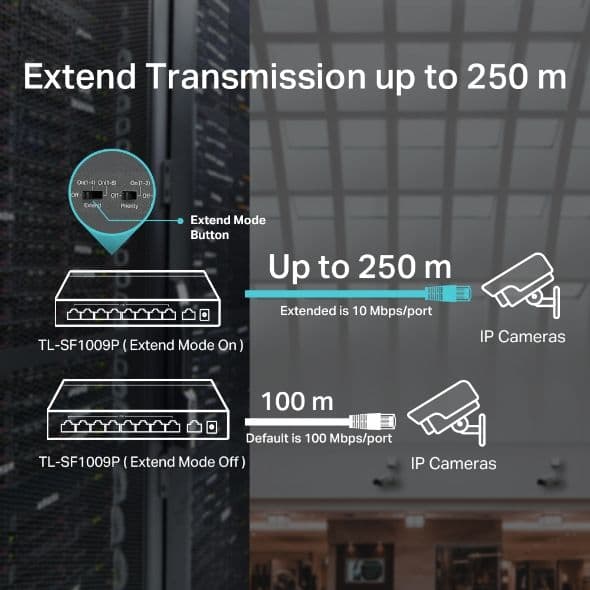

Up to 250 m data and power transmitting range under Extend Mode**

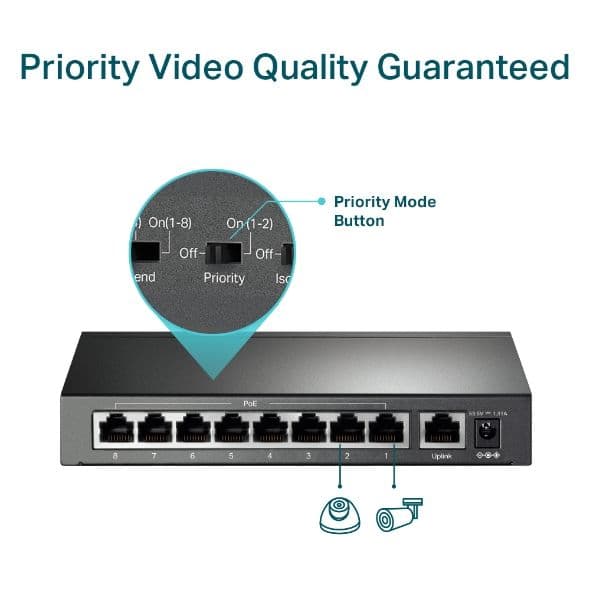

Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
Isolation Mode allows one-click client traffic separation for higher security and performance

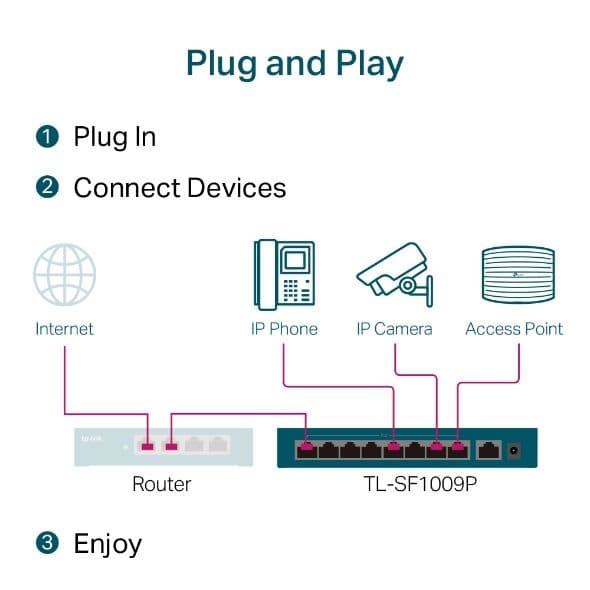

Plug and play with no configuration required

Low stock

Buy via WhatsApp

Advanced Features

• Compatible With IEEE 802.3af/at Compliant PDs• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)• Priority Mode Button (Ports 1–2)• Isolation Mode Button (Ports 1–8)• Mac Address Auto-Learning and Auto-Aging• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode

Package Content

• TL-SF1009P• Power Adapter• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Interface

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)• AUTO Negotiation• AUTO MDI/MDIX

Dimensions ( W x D x H )

6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)

Certification

FCC, CE, RoHS

External Power Supply

External Power Adapter (Output: 53.5VDC / 1.31A)

Max. Power Consumption

• 3.6 (220/50 Hz. no PD connected)• 77.08 (220/50 Hz. with 65 W PD connected)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)• EIA/TIA-568 100Ω STP (maximum 100m)
