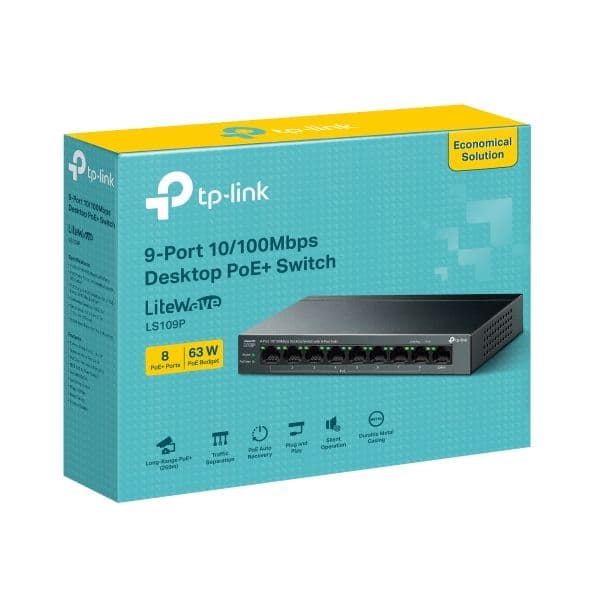

LS109P

89,00 ₼69,00 ₼-22%

63 W PoE Budget: Eight 10/100 Mbps 802.3af/at-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 30 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Traffic Separation for Higher Security: Isolation Mode allows one-click client traffic separation to avoid snooping and tampering, and isolate broadcast storms.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Low stock

Buy via WhatsApp

Advanced Features

• Extend Mode Button (Ports 1–4/1–8, Up to 250 m PoE power supply and data transmission)• Isolation Mode Button (Ports 1–8)• PoE Auto Recovery Button (Ports 1–8)• Compatible With IEEE 802.3af/at Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• Green Technology

Package Content

• LS109P• Power Adapter• Installation Guide• Rubber Feet

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Power Supply

External Power Adapter (Output: 53.5VDC / 1.31A)

Interface

• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ Ports)• AUTO Negotiation• AUTO MDI/MDIX

Dimensions ( W x D x H )

6.7×3.9×1.1 in (171×98×27 mm)

Certification

CE, FCC, RoHS

Max. Power Consumption

• 3.67 W (220 V/50 Hz no PD connected)• 73.24 W (220 V/50 Hz with 63 W PD connected)

LED

• Power• Link/Act• PoE Status• PoE MAX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
