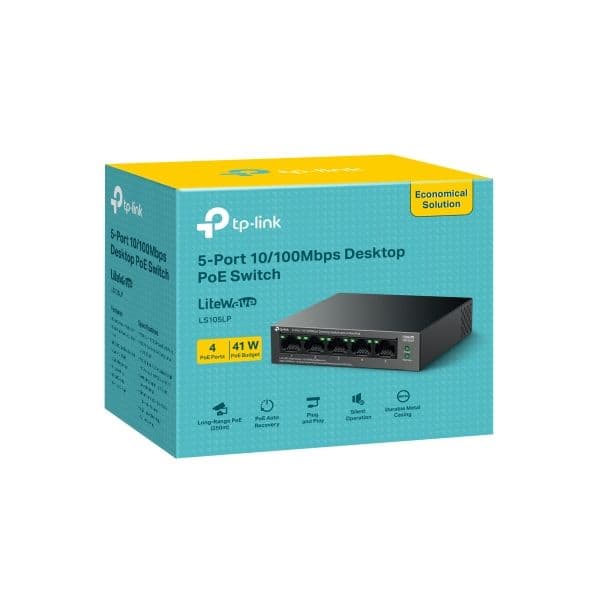

LS105LP

52,00 ₼44,90 ₼-14%

41 W PoE Budget: Four 10/100 Mbps 802.3af-compliant PoE ports easily connect and power fixed devices like IP cameras, access points, and IP phones via a single cable. Up to 15.4 W PoE output is supported by each PoE port.*
Up to 250 m PoE Transmission: With Extend Mode, PoE transmission distance reaches up to 250m, perfect for surveillance camera deployment in large areas.**
PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices.
Plug and Play: Simply plug and play for instant connectivity with no configuration required.
Silent Operation: Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
Reliable Hardware Design: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.

Low stock

Buy via WhatsApp

Advanced Features

• Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery Button (Ports 1-4)• Compatible With IEEE 802.3af Compliant PDs• Mac Address Auto-Learning and Auto-Aging• IEEE 802.3x Flow Control• Green Technology

Package Content

• LS105LP• Power Adapter• Installation Guide

Environment

• Operating Temperature: 0–40 ℃ (32–104 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Power Supply

External Power Adapter (Output: 53.5VDC / 0.81A)

Interface

• 5× 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af PoE Ports)• AUTO Negotiation• AUTO MDI/MDIX

Dimensions ( W x D x H )

3.9×3.9×1.0 in (100×98×25 mm)

Certification

CE, FCC, RoHS

Max. Power Consumption

• 2.40 W (220 V/50 Hz no PD connected)• 46.45 W (220 V/50 Hz with 41 W PD connected)

LED

• Power• Link/Act• PoE Status• PoE MAX

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m); EIA/TIA-568 100Ω STP (maximum 100m)
