LS1016G

Standards and Protocols

IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3p

Package Content

16-Port Gigabit Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitsRubber Feet

Environment

Operating Temperature: 0℃~50℃ (32℉~122℉);Storage Temperature: -40℃~70℃ (-40℉~158℉);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing

Power Supply

100-240V~50/60Hz, 0.3A

Interface

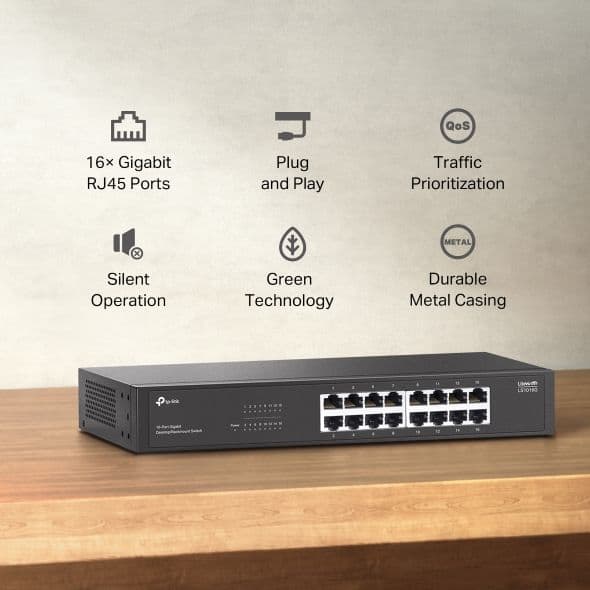

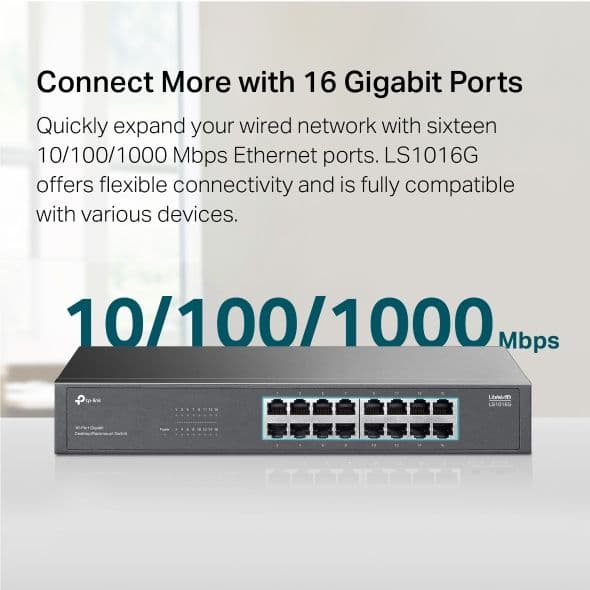

16× 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Dimensions ( W x D x H )

11.6 × 5.5 × 1.7 in. (294 × 140 × 44 mm)

Certification

FCC, CE, RoHs

Max. Power Consumption

7.2 W (110V/60Hz)

Network Media

• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)• 100BASE-TX: UTP category 5 or above cable (maximum 100m)• 1000BASE-T: UTP category 5e or above cable (maximum 100m)

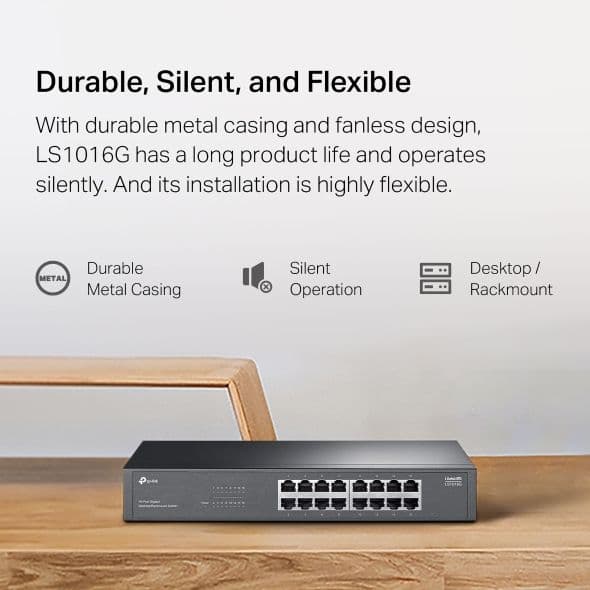

Fan Quantity

Fanless

Max. Heat Dissipation

24.42 BTU/h (110V/60Hz)

Switching Capacity

32 Gbps

Packet Forwarding Rate

23.808 Mpps

MAC Address Table

8K

Jumbo Frame

15 KB

Green Technology

Yes

Transmission Method

Store-and-Forward
