Supports convenient side installation with compact structure.
Adopts small DC brushless motor with low noise to increase output torque and realize precise intelligent control.
Supports multiple anti-fall modes such as IR, vehicle detectors, and radars.
Delayed boom pole closing. Supports 1 to 600 seconds.
Supports Bluetooth connection with smartphone app for barrier gate configuration.
Standardized chuck, one chuck fits all types of boom pole.

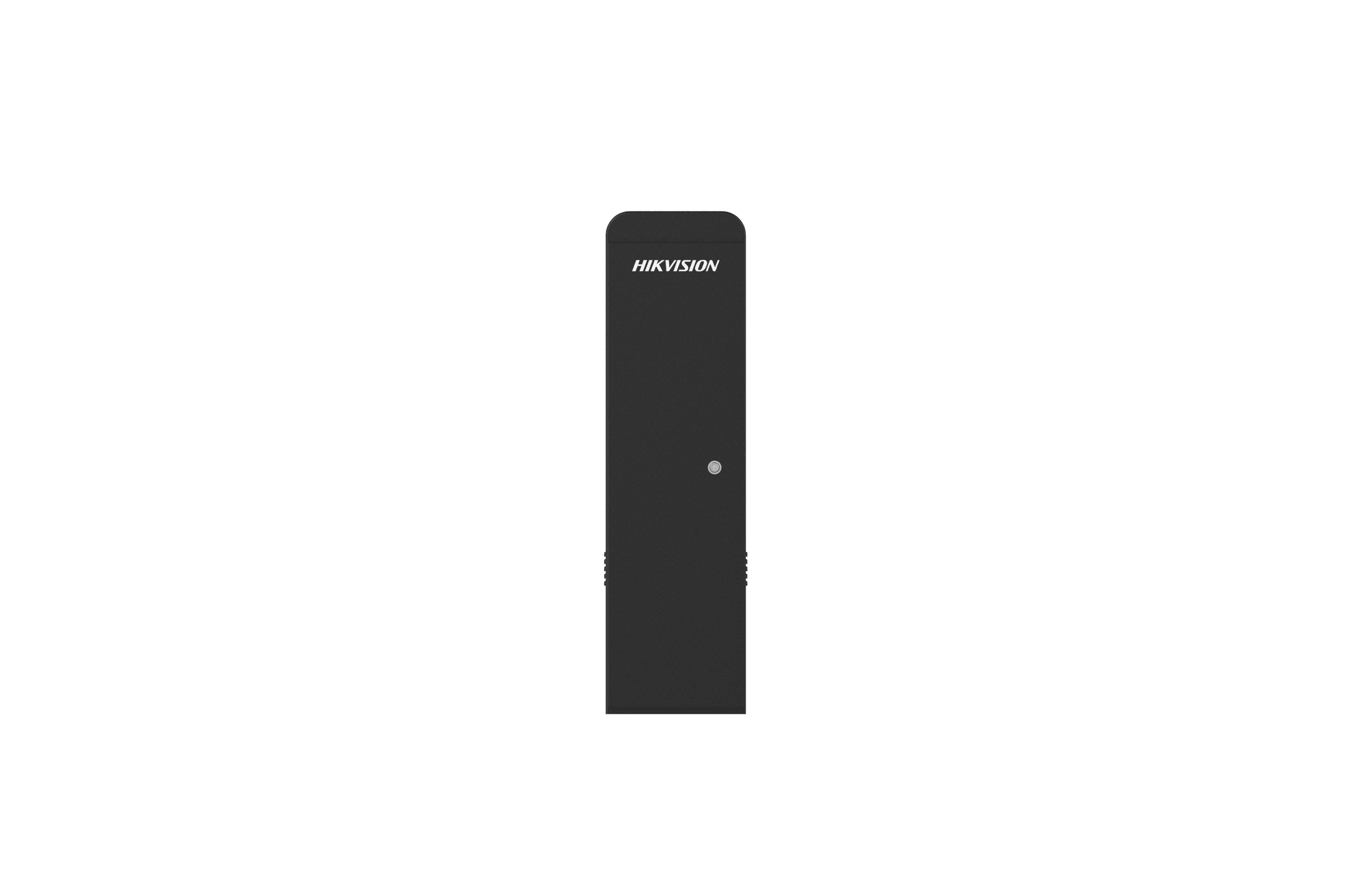

Barrier Housing
Barrier Housing MaterialSGCC
Barrier Housing Thickness1.5 mm
Barrier Housing ColorBlack background with silver pattern
Boom Pole Installation Height880 mm
Body Indicatorswithout Indicator
Barrier Gate General
Matched Boom Pole Type
DS-TMG320-ML/DS-TMG320-MR: DS-TMG001-3D(3m octagonal), DS-TMG001-3D(4m octagonal), DS-TMG001-3D(2.6-4m), DS-TMG002-3D(1.5+1.5m), DS-TMG001-6L(3m)(1.4mm), DS-TMG002-6L(1.5+1.5m)
DS-TMG320-LL/DS-TMG320-LR: DS-TMG001-3D(3.6-6m), DS-TMG002-3D(2+2m), DS-TMG002-3D(2.5+2.5m), DS-TMG001-6L(4m)(1.4mm), DS-TMG002-6L(2+2m)
Rising Speed3m: 3s, 4m: 3.5s, 2.6-4m telescopic: 4s, 1.5+1.5 m folding: 3s, 3.6-6 m telescopic: 6.5s, 2+2 m folding: 4s, 2.5+2.5 m folding: 5.5s, 3m light: 3s, 4m light: 3.5s, 1.5+1.5m light folding: 3s, 2+2m light folding: 4s
Falling Speed3m: 3s, 4m: 3.5s, 2.6-4m telescopic: 4.5s, 1.5+1.5 m folding: 4s, 3.6-6 m telescopic: 7.5s, 2+2 m folding: 6s, 2.5+2.5 m folding: 7s, 3m light: 3s, 4m light: 3.5s, 1.5+1.5m light folding: 3s, 2+2m light folding: 4.5s
Boom Pole Direction
DS-TMG320-ML/DS-TMG320-LL: left
DS-TMG320-MR/DS-TMG320-LR: right
Boom Pole Falling Delay1~600s
Motor TypeDC Brushless Motor
Number of Cycles2500000
Working Voltage24VDC
Remote Controller Frequency433.5 MHz
Max. Number of Remote Controller Binding64
Consumption100W
Temperature and HumidityTemperature: -30 °C to 70 °C (-22 °F to 158 °F)
Rising Boom Pole for PoweroffOptional, order emergency barrier-lifting module independently
Barrier Gate
Duty Cycle100%
Interface
Rising to Limit1 group
Falling to Limit1 group
Open1 group
Close1 group
RS-4851 group
Stop1 group
IR/Vehicle Detector/Radar1 group
LED Indicators1 group
Approval
RF
CE-RED
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021+A2:2024
EN 301 489-1 V2.2.3
EN 301 489-3 V2.3.2
EN 301 489-17 V3.3.1
EN 300 328 V2.2.2
EN 300 220-1 V3.1.1
EN 300 220-2 V3.1.1
EN IEC 62311:2020
EMC
CE-EMC
EN 50130-4: 2011+A1:2014
EN 55032: 2015+A11:2020+A1:2020
EN 55035: 2017+A11:2020
EN 61000-3-3: 2013+ A1:2019+A2:2021
EN IEC 61000-3-2: 2019+A1:2021+A2:2024
Security
CE-LVD
EN 62368-1: 2014 + A11: 2017
EN IEC 62368-1:2020+A11:2020
EnvironmentROHS
ProtectionIP54
General
Power Supply110/220 VAC(switchable)
Bluetoothsupported
Remote Control Distance30m
Dimensions1040 × 340 × 298.3 mm (40.94 × 13.39 × 11.74 inch)
37.79 kg (83.31 lb.)
Dimensions (with Package)1143 × 436 × 403mm(45 × 17.17 × 15.87inch)
Weight (with Package)40.9 kg (90.17 lb.)
